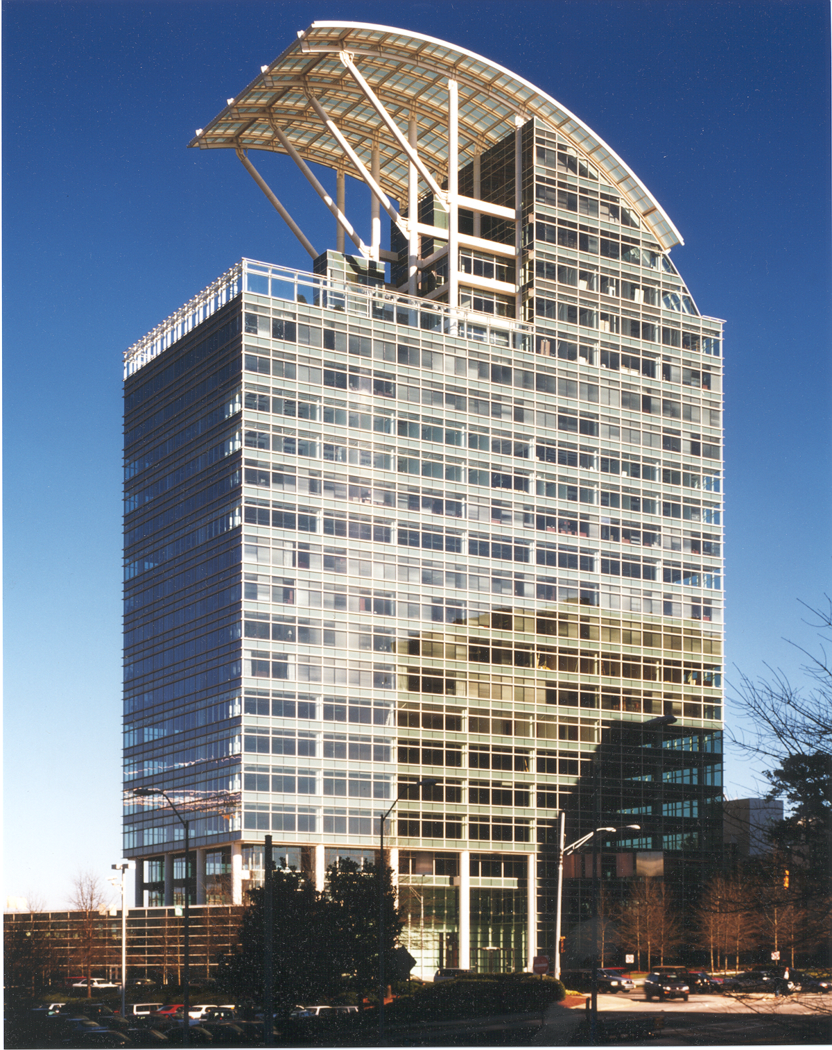

The Pinnacle Building

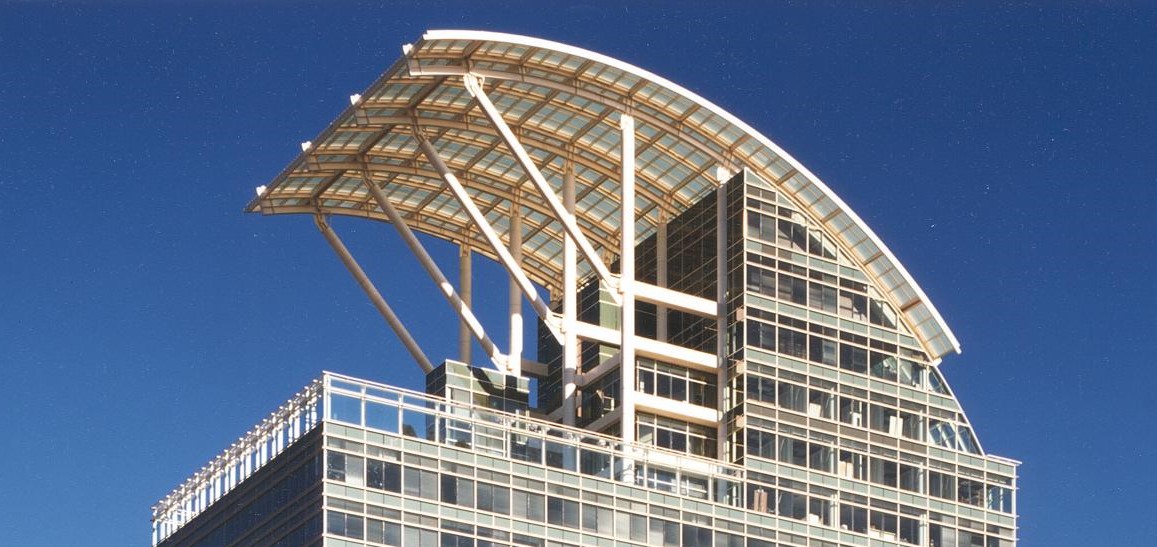

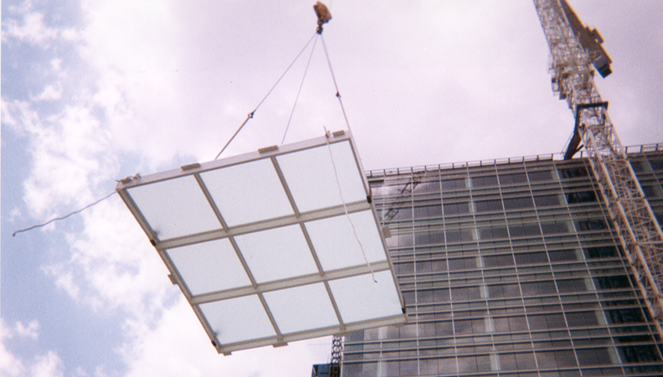

Linel's scope included engineering manufacturing and installation of the stunning 80 ft. by 180 ft. radius peak. This project required factory unitization of the framing system to be set in place using a tower crane. On the back side of the building along the base of the arc is a radiused segmented skylight that spans the entire width of the building and 30 ft. up the arc. The framing system used for this project employs a 2-3/8-inch-wide rafter system glazed with a white PVB laminated insulated glass unit. The framing system also features upper exposed guttering for superior water control. This project was featured on the cover of Building Design & Construction magazine.
